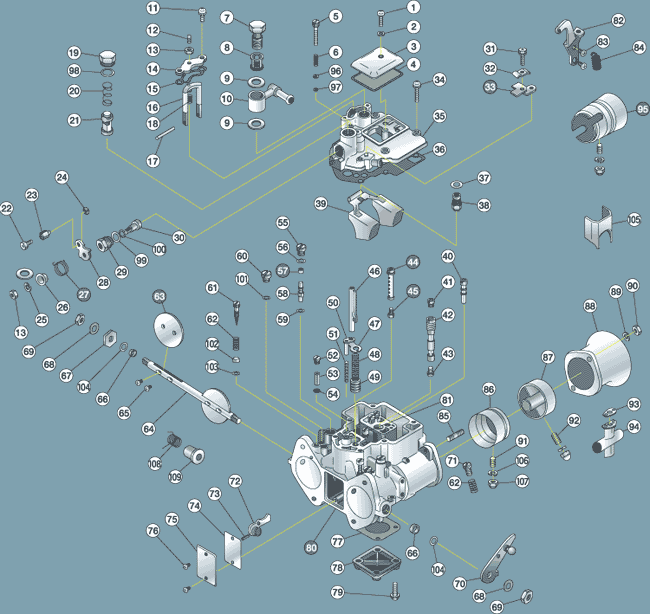

Dia No, Qty. Req'd Parts Number Description Dia No. Qty. Req'd Parts Number Description
1 1 R711-5020 Jet cover screw 55 2 8810-0010 Pump jet plug
2 1 R351-1050 Jet cover washer 56 2 R020-1006 Pump jet O-ring
3 1 8820-0060 Jet cover 58 2 8865-**** Pump jet
4 1 8804-0080 Jet cover gasket 59 2 8809-0020 Pump jet gasket
5 1 8810-0110 Pump aj screw 60 2 8810-0020 Vacuum take off plug
6 1 8818-0090 Pump stopper spring 61 2 8810-0090 Idle mixture screw
7 1 8810-0050 Fuel union bolt 62 2 8818-0070 Idle screw spring
8 1 8815-0010 Fuel filter     63`66 Not for sale
9 2 8809-0090 Fuel union gasket 67 1 8808-0010 Shaft washer
10   8805-0060 Fuel union LH 68 2 8808-0030 Lock washer
10   8805-0050 Fuel union RH 69 2 8810-0140 Shaft nut
10   8805-0070 Fuel union Dual 70 1 8850-0050 Throttle lever
11 2 R812-1510 Screw jet cover 70   8850-0050L Throttle lever
12 1 8810-0190F Float aj screw 71 1 8810-0201 Screw throttle aj
13 1 R411-4005 Float aj nut 72 1 8850-0060 Pump lever
14 1 8820-0160 Float aj plate 73 1 8820-0340 Spring pin
15 1 8804-0040 Float aj plate@gasket 74 1 8809-0030 Pump cover plate gasket
16 1 8850-0020 Saddle 75 1 8812-0010 Pump cover plate
17 1 8820-0150 Float-pin 76 2 8810-0180 Screw plate
18 1 8818-0010 Float aj spring 77 1 8809-0050 Bottom cover gasket
19 1 8810-0060 Screw plug 78 1 8820-0050 Bottom cover
20 1 8818-0050 Starter valve spring 79 4 R812-1520 Screw bottm cover
21 1 8850-0090 Pump plunger 80     Not for sale
22 1 R771-5010 Starter terminal screw 81 1 8867-0000 Exhaust bleed
23 1 8810-0100 Cable clamp 82 1 8803-0040 Throttle lever bracket
24 1 R612-0004 Starter terminal circlip 82   8803-0040L Throttle lever bracket L
25 1 R471-0050 Spling washer 83 2 8810-0210 Screw bracket
26 1 8808-0040 Spring retainer 84 1 8818-0081 Throttle lever spring
27 1 8818-0030 Spling LH 85 4 4514-0612 Stud bolt
27   8818-0031 Spling RH 85 4 8810-0220 Screw 50ƒΣ
28 1 8804-0010 Cold starter lever 86 2 8819-45** Main venturi 45**
29 1 8810-0070 Nut (Screw plug) 86 2 8819-47** Main venturi 47**
29   8810-0071 Nut (Chokeless plug) 86 2 8819-50** Main venturi 50**
30 1 8802-0010 Cold start cam LH   2 8820-0270 Auxiliary venturi
30   8802-0011 Cold start cam RH 88 2 8819-4550 Air horn 45-50mm
31 1 8803-0010A Cable bracket Assay 88 2 8819-4750 Air horn 47-50mm
34 6 R812-1525 Top cover screw 88 2 8819-5035 Air horn 50-35mm
35 1 8820-0020 Top cover 89 4 R471-0060 Spring wsher 40ƒΣ 45ƒΣ
36 1 8809-0011 Top cover Gasket 90 4 R414-4006 Nut 40ƒΣ 45ƒΣ
37 1 8809-0060 Needle valve gasket 91 2 8810-0160 Set screw
38 1 8850-0130 Needle valve 1.8 92 2 8810-0170 Set screw
39 1 8850-0010 Float 93 2 8809-0110 Gasket venturi 50ƒΣ
40 2 8863-**** PLLOT JET 94 2 8820-0310 Aux venturi 50ƒΣ
41 2 8862-**** AIR JET 95     Not for sale
42 2 8820-0242 Emulsion tube type S 96 1 8808-0090 Washer pump plug
42 2 8820-0243 Emulsion tube type R 97 2 8809-0130 Pump aj screw Oring
42 2 8820-0244 Emulsion tube type T 98 2 8809-0170 Screw pump plug Oring
43 2 8861-**** MAIN JET 99 1 8809-0160 Screw plug Oring
44 1 8820-0040 Starter pipe 100 1 8809-0150 Cold sta‚’t cam Oring
45 1 8864-00** Starter jet 101 2 8809-0180 Screw plug Oring
46 1 8850-0040 Pump rod 102 2 8808-0080W Idle screw washer
47 1 8808-0020 Pump plate 103 2 8809-0140 Idle screw Oring
48 1 8818-0020 Pump spring 104 2 8808-0070 Lock washer
49 1 8850-0030 Pump plunger 105 1 8818-0120 Plate
50 1 8850-0120 Pump rod stopper 106 4 8809-0190 Gasket faiver
51 1 8818-0100 Stopper spring 107 4 8810-0240F Nut
52 2 8810-0030 Pump weight plug 107 4 8810-0240 Cap nut
53 2 8820-0100 Pump demand weight 108 1 8818-0130 Center return spring
54 2 8820-0370 Pump Ball 109 1 8808-0080S Center spring retainer
